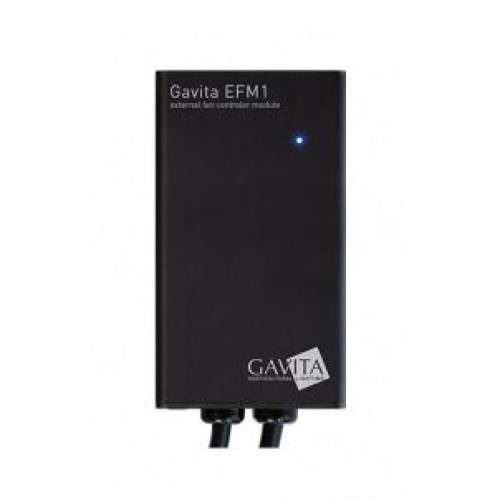

For those who do not (yet) want to move to EC fans, we have an intelligent AC fan control module for the ELF controllers, that will control your current AC fans as efficient and quiet as possible. On low speed we use burst modulated AC control to reduce losses and reduce hum in the fan motor, on higher speed settings the controller switches to phase cut control, which is more efficient in those stages. The EFM can be plugged in between your power outlet and fan, and a simple signal wire is all that is needed to control it from the ELF.

Connect AC fans to the Gavita Master controller

• Easy plug and play solution to control AC fans.

Efficient control of AC fans results in low noise production

• On low speed the FB1 uses burst modulated AC control to reduce losses and reduce hum in the fan motor. On higher speed settings the controller switches to phase cut control, which is more efficient in those stages.

Available in local plug versions

• The ECM1 is available with EU, US (120 and 240), EU, and AUS plugs.

Specifications

• Max current: 6A
• Min power: 25W
• Max power: 1.44kW
• Control port: 0-10V 4P4C RJ9
• Plug type: NEMA 6-15
• Warranty: 3 years
