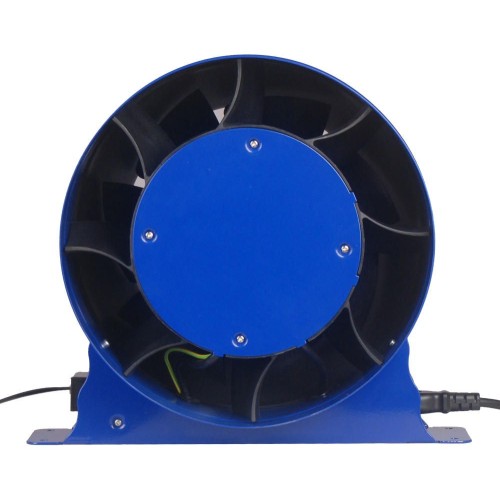

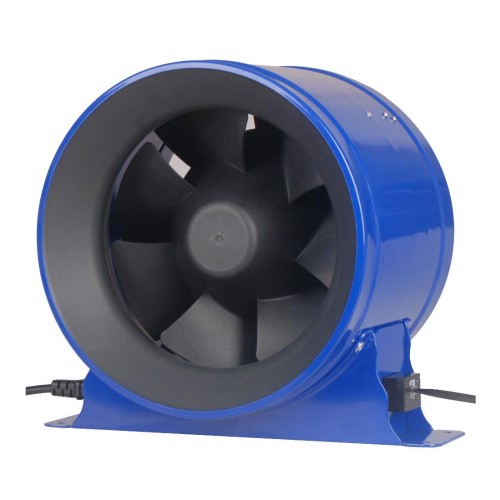

Phresh HyperFan V2 by Phresh

Phresh HyperFan V2 by Phresh



Product Options

  • £160.95

    In Stock

Hyperfan V2™ offers the highest static pressures of any fan type in the industry (up to 680 Pa) now featuring brand new proprietary 0-10 V, 9 pole EC exclusive motors. They are compatible with Gavita ELF 1 & 2 Master Controllers. The much improved 0-10 V motors provide seamless, speed adjustment from a complete stop (0 rpm) up to full power without any droning or motor degradation. Fan blade balance has also been refined to near perfect tolerances which reduces air noise and increases bearing life. New steel housings increase fan strength and integrity.

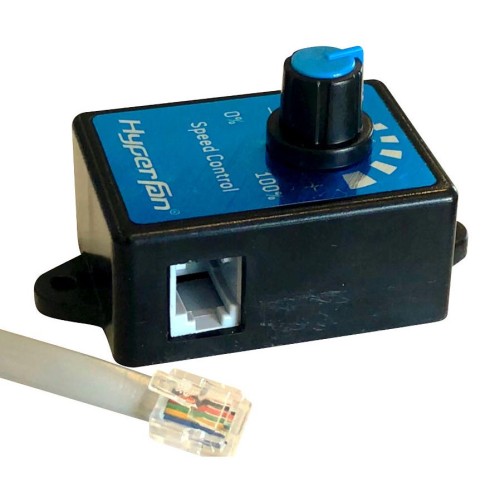

A detachable speed controller is included and connects/disconnects easily via the new and improved RJ14 ports. 5 meter RJ14 cable is also included.

Please note: Speed controller compatability with 0-10V signal only. 0-5V signal controllers are not compatible.

Features

  • New 9 pole digital EC "brush-less" motors
  • EC digital brushless motors are quieter, operate at lower temperatures, energy efficient and reliable
  • Higer fan efficiency @ 7.85 CFM per watt
  • Higher linear air flow output than other fans
  • High Pressure Laminar Air Flow/Taper Blade & Stator Technology
  • Detachable fully variable speed controller included with each fan
  • Sturdy steel housing and Abec 7 ball bearings
  • 0 - 10V controller compatible via RJ9 or RJ11 cable
  • Compatible with Climate Control V2 (sold separately)
  • 2 Year Warranty
Model 150mm 200mm 250mm
Diameter (mm / Inches) 150 / 6 200 / 8 250 / 10
Max Flow (m3/hr) 560 1230 1840
Max Flow (L/s) 156 342 512
Max Flow (CFM) 330 725 1084
Pressure (Pa) 545 560 610
Noise (dBA) 66 69 72
Voltage (Volts AC) 240 240 240
Max Power Usage (Watts) 42 90 180
Suggested Grow Area (m) 2 x 2 x 2 2 x 4 x 2 4 x 4 x 2
Length (mm) 140 170 205
Width - Including Bracket (mm) 204 248 314
Weight (kg) 1.9 2.8 4.8



SKU: ES-5817

Tags: Phresh, Hyper, Fan
