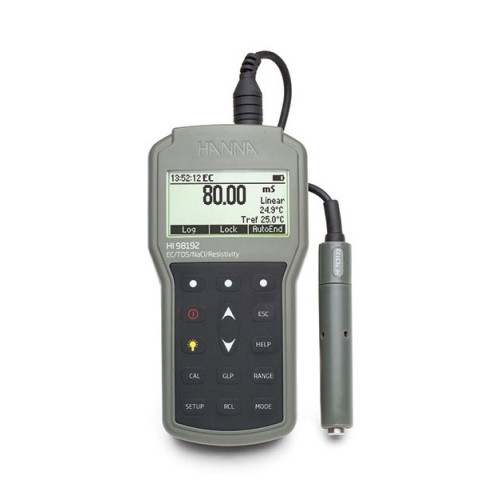

The HI-98192 is a waterproof, portable conductivity meter that has an expanded conductivity range from 0.000µS/cm to 400 mS/cm, as well as TDS, resistivity and three salinity scales. This meter automatically recognises the probe type (two or four ring) and allows the user to adjust the nominal cell constant.

HI-98192 is also ready to perform all three stages USP <645> method required for EC measurement of ultrapure water. Choose from seven memorised standards and obtain up to a five point conductivity calibration. For salinity (% range), HI-7037 standard allows users to make a one point calibration.

EC and TDS measurements are fully customisable and include: cell constant selection between 0.010 and 10.000, selection of linear or natural water (non-linear) or no temperature compensation (for actual conductivity reading), configurable temperature compensation coefficient range from 0.00 to 10.00%/°C, choice of reference temperatures of 15°C, 20°C and 25°C, and a selectable TDS factor between 0.40 and 1.00.

Quick connect probe

The HI-763123 four ring Stainless Steel conductivity probe features a quick connect DIN connector to make attaching and removing the probe simple and easy.

Data Logging

The HI-98192 allows storage of up to 400 log-on-demand samples or 1000 lot logging samples that can be later transferred to a PC with the supplied HI-920015 USB cable and HI-92000 software.

GLP

Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including date, time and calibration values are stored for retrieval at a later time.

Key Features

• IP67 rated waterproof, rugged enclosure
• Salinity readings - Salinity can be displayed as % NaCl, seawater scale (ppt) or practical salinity scale (PSU)
• Calibration - perform up to a five point calibration for enhanced accuracy

Backlit Graphic LCD Display

The HI-98192 features a backlit graphic LCD with on-screen help. The graphic display allows for the use of virtual keys to provide for an intuitive user interface.

Waterproof Protection

The meter is enclosed in an IP67 rated waterproof casing and can withstand immersion in water at a depth of 1 m for up to 30 minutes.

Quick connect probe

The HI-763133 four-ring stainless steel conductivity probe features a quick connect DIN connector to make attaching and removing the probe simple and easy.

PC Connectivity

Logged data can be transferred to a Windows compatible PC with the included HI-920015 micro USB cable and HI-92000 software.

Calibration

Choose from seven memorized standards and obtain up to a five point conductivity calibration. For salinity (% range), HI-7037 standard allows users to perform a one point calibration.

USP <645>

HI-98192 can be used to perform all three stages of USP method required for EC measurement of ultrapure water and generates a report when the any of the three stages are met.

Three stages of conformity:

• Performs all 3 stages of USP <645> water quality testing requirements

On-screen guide:

• Users are provided with on-screen instructions for each USP stage

Progress bar:

• Displays reading stability progress towards meeting stage 2 requirements

Measurement

EC and TDS measurements are fully customizable and include: cell constant selection between 0.010 and 10.000, selection of linear or natural water (nonlinear) or no temperature compensation (for actual conductivity reading), configurable temperature compensation coefficient range from 0.00 to 10.00%/°C, choice of reference temperatures of 15°C, 20°C and 25°C, and a selectable TDS factor between 0.40 and 1.00. Ten sets of customized measurement parameters can be stored as a user profile and later recalled.

AutoHold

Pressing AutoHold during measurement will automatically hold the first stable reading on the display.

Dedicated Help Key

Contextual help is always available through a dedicated “HELP” key. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration. The help information displayed is relative to the setting/option being viewed.

Supplied with

• HI-763133 platinum four ring conductivity/TDS probe
• HI-7031M
• HI-7035M
• Rugged carrying case
• 100mL plastic beaker (2)
• HI-92000 PC software
• HI-920015 micro USB cable
• Batteries
• Instruction manual
• Quality certificate
