GSE AC-EC LCD Fan Controller 2 x 5A by GSE

GSE AC-EC LCD Fan Controller 2 x 5A by GSE


  • £273.95

    In Stock

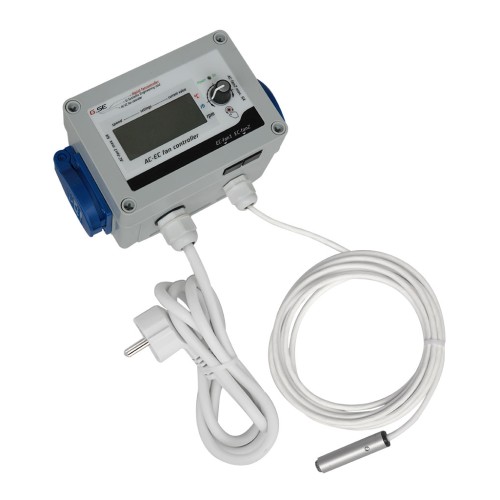

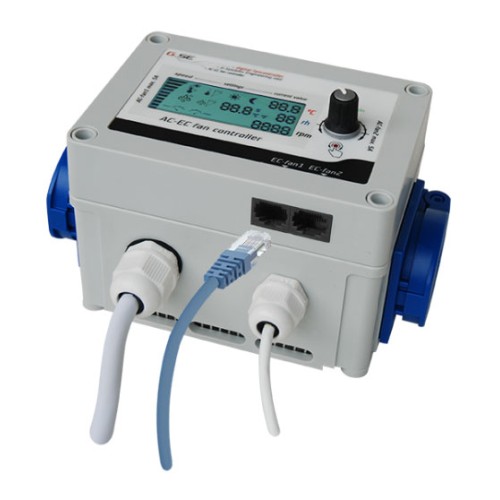

This AC-EC fan controller with LCD display, a rotary push knob allows a very fast setting of all the values and reading of all the information's given by the fan such as actual set speed, temperature, humidity day/night, negative pressure of the intake fan and RPM (rounds per minute) of the EC-exhaust fan. A built in light sensor in the probe recognise day/night modes. Two 5A/230V AC exits for intake and exhaust fan, in parallel you have 2xRJ45 connector and you can choose between 0-10V or PWM (pulse wide modulation) signal. 2 internal temperature sensors prevent from overheating on the heat sink and processor side. The AC-EC fan controller comes with power cable 1.5m, 4m sensor cable. It is ready to use. You can program 15 individual settings with rotary push button.

Features:

  • Temperature day
  • Temperature hysteresis day
  • Humidity day
  • Humidity hysteresis day
  • Minimum speed day
  • Maximum speed day
  • Temperature night
  • Temperature hysteresis night
  • Humidity night
  • Humidity hysteresis night
  • Minimum speed night
  • Maximum speed night
  • Negative pressure setting
  • Switch sensor level
  • Switch over time day/night

LCD display:

  • Graphic and digital display of speed rpm constant
  • Temperature display constant
  • Humidity display constant
  • Set point selectable not constant, over input keys

Sizes and technical data's:

  • Case: WxHxD = 130x80x70mm
  • Controller: WxHxD = 160x110x90mm
  • Designed for: 2x1'000W
  • Volts: 230V / 50HZ
  • Current: 10A
  • Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
  • 0.5°C accuracy from –10°C to +85°C
  • humidity accuracy ±4.5%rh
  • Protection class: IP54

Settings range:

  • Temperature: 15C° to 35C°, Hyst 1 to 5C°
  • Humidity setting: 0-100%, Hyst 1 to 20%
  • Minimum speed: off, 1% to 100%
  • Maximum speed: 10% to 100%
  • Negative pressure: 0% to -50%


SKU: ES-6425

Tags: GSE, AC-EC, LCD, Fan, Controller
